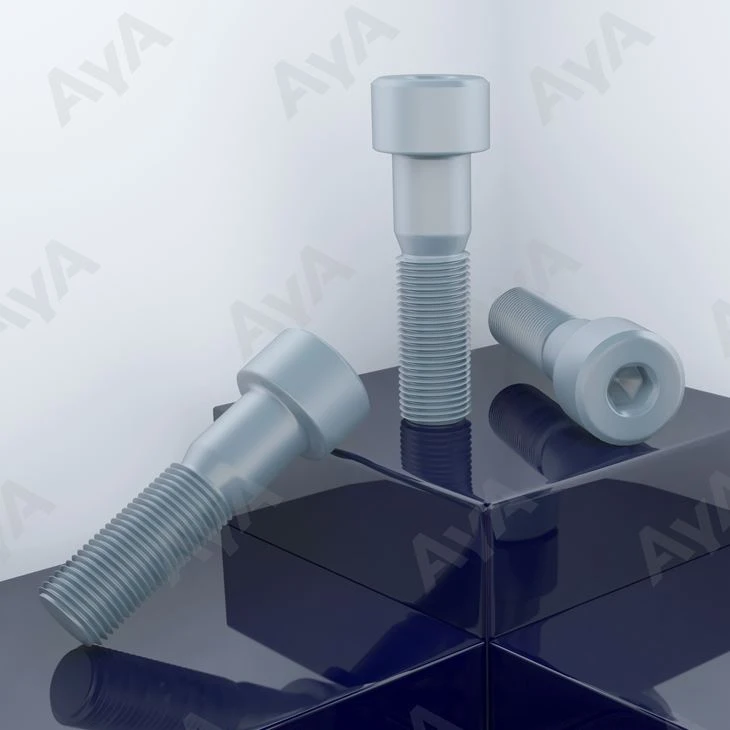

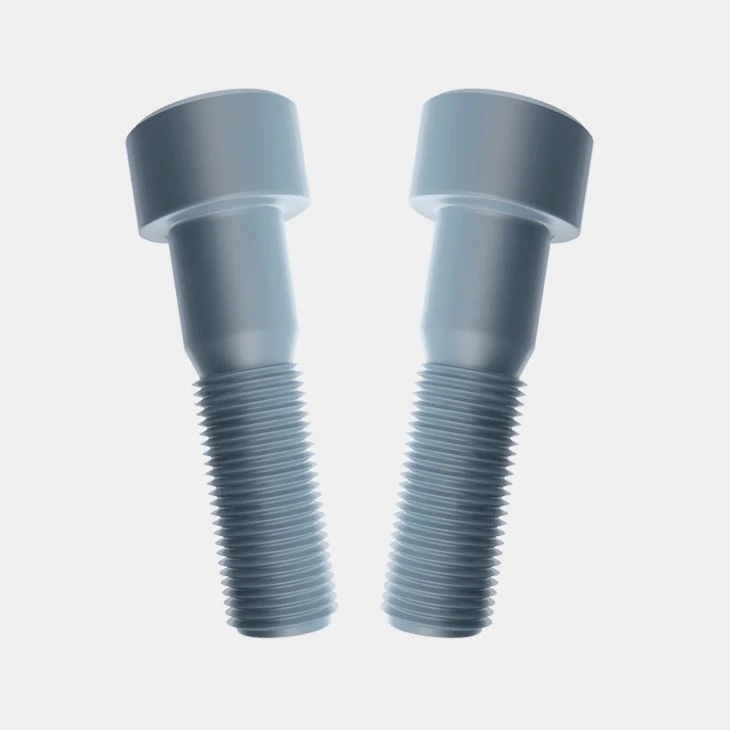

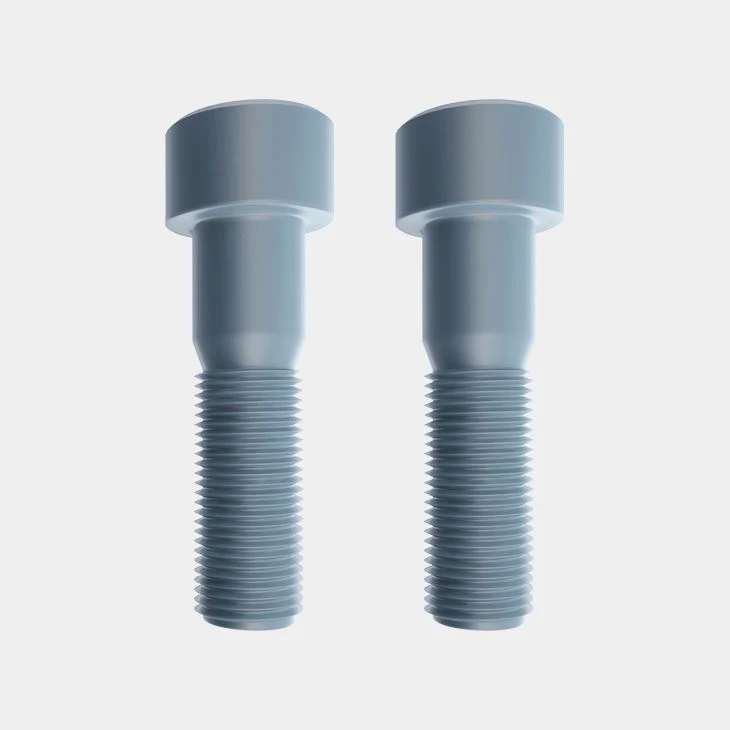

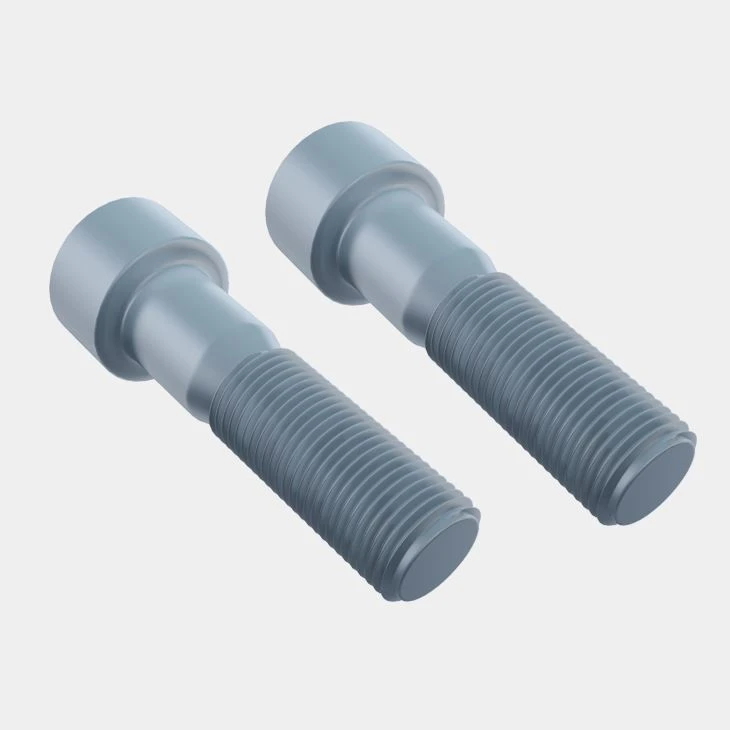

Hex Sokt-kapsboute
Standaard: DIN 912
Type: Coarse Duur, Gedeilteleke Duur
Commoditeit: Hex Sokke-kans
Ouch genaomp: DIN 912 Allen Bolt
Materiaal: koolstofsjtel
Eigensjapsklasse: 8,8,10,9,12,9
Diameter: M1,4/ M1.6/ M2,5/ M2, M4/ M4/ M6/ M6/ M6/ M10/ M10/M12/ M14)/M16/18)/ M20/M22)/M22)/M27)/M27)/ M33/ M42/M42/M42/M 564/M64/ M64/ M64/ M80/ M90/ M100
Fins: Plain, Zwarte obstakel, Zink geplatteerd, Heit gegoejd, oosting, Dacromet, Phosffatie, Cadmium Elektroplate, Nickel geplaat
Hooftype: Sokkethoof
Drive type: Hexagon Sokket
Alternatieve Standaard: GB /T 70.1, ISO 4762, DIN ENO ISO 12474, ANSI/ASME B 18.3.1M, UNI 5931, NF E 25-125, AS 1420
MOQ: 1000 kg
Lead Tied: 30 tot 60 daag
Product-introduksie
AYA-fasteners (Hebei) Co., Ltd. is ein vaan de mies ervare producente en leveranciers vaan hex stopcontacte in Sjina. Voel je vrij um hoogwaardige hex-sokket-kaptinge te kope die in Sjina hei vaan oze febrik zien gemaak. Veur prijsconsultatie, neem contact op mèt ons.
Es wereldwijde leverancier vaan aongepaste bevestigingsoplossinge, is ‘t deensproces vaan AYA ouch zoe dicht bij klante es de producte vaan AYA. Vaan ‘t besjrieve vaan behoefte tot ‘t volge vaanát--up dienste, AYA zal onmiddellek en gein poginge spare um klante te helpe vastlossingsprobleme op te losse die opkaome, um de zörg vaan klante te eliminere.
Product Besjrieving
Produkt Naom | Hex Sokt-kapsboute |
Ouch genaomp | DIN 912 Allen Bolt |
Materiejaal | Koolstofsjtel |
Sjtandaard | DIN 912 |
Alternatieve standaard | GB /T 70,1, ISO 4762, DIN EN ISO 12474, ANSI/ASME B 18,3,1M, UNI 5931, NF E 25-125, AS 1420 |
Goede Klas | 8.8,10.9,12.9 |
Dimeter | M1.4/ M1.6/ M2/ M2.5/ M3/ M4/ M5/ M6/ M8/ M10/ M12/ (M14)/ M16/ (M18)/ M20/ (M22)/ M24/ (M27)/ M30/ (M33)/ M36/ M42/ M48/ M56/ M64/ M72/ M80/ M90/ M100 |
Eindsjtreep | Plain, Zwarte Verzet, Zink, Gebed Gegrild, oxidatie, Dacromet, Phosffat, Cadmium Elektroplate, Nickel |
Hooftype | Sockethoof |
Drieft-type | Hexagon Sokket |
Type | Koarse Duur, Gedeiltelek Thread |

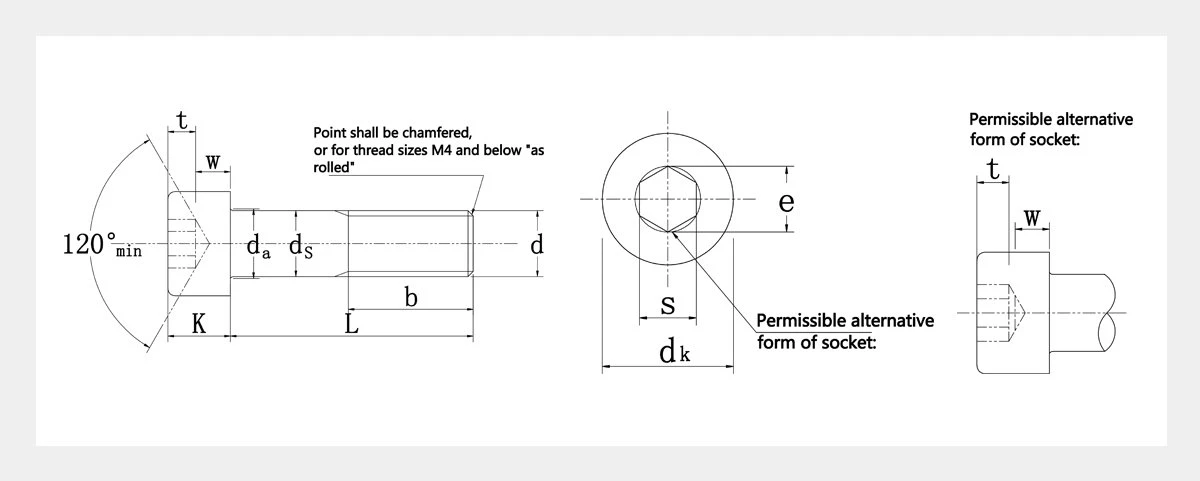

Dimensies Tabel
| Schroef Behoerd d | M1.4 | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | ||
| P | Sjmiete | Koarse thread | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| Fijne thread toonhoogte-1 | - | - | - | - | - | - | - | - | 1 | 1.25 | ||
| Fijne thread toonhoogte-2 | - | - | - | - | - | - | - | - | - | 1 | ||
| dk | gewoen hoof | max | 2.6 | 3 | 3.8 | 4.5 | 5.5 | 7 | 8.5 | 10 | 13 | 16 |
| knoopde hoofde | max | 2.74 | 3.14 | 3.98 | 4.68 | 5.68 | 7.22 | 8.72 | 10.22 | 13.27 | 16.27 | |
| min | 2.46 | 2.86 | 3.62 | 4.32 | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | ||
| da | max | 1.8 | 2 | 2.6 | 3.1 | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | |
| ds | max | 1.4 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | |
| min | 1.26 | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | ||
| e | min | 1.5 | 1.73 | 1.73 | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | |
| k | max | 1.4 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | |
| min | 1.26 | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.7 | 7.64 | 9.64 | ||
| s | Nominale Grootte | 1.3 | 1.5 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | |
| min | 1.32 | 1.52 | 1.52 | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | ||
| max | 1.36 | 1.56 | 1.56 | 2.06 | 2.58 | 3.08 | 4.095 | 5.14 | 6.14 | 8.175 | ||
| t | min | 0.6 | 0.7 | 1 | 1.1 | 1.3 | 2 | 2.5 | 3 | 4 | 5 | |
| w | min | 0.5 | 0.55 | 0.55 | 0.85 | 1.15 | 1.4 | 1.9 | 2.3 | 3 | 4 | |
| Schroef Behoerd d | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | ||
| P | Sjmiete | Koarse thread | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 |
| Fijne thread toonhoogte-1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 2 | ||
| Fijne thread toonhoogte-2 | 1.5 | - | - | 2 | 2 | 2 | - | - | - | - | ||
| dk | gewoen hoof | max | 18 | 21 | 24 | 27 | 30 | 33 | 36 | 40 | 45 | 50 |
| knoopde hoofde | max | 18.27 | 21.33 | 24.33 | 27.33 | 30.33 | 33.39 | 36.39 | 40.39 | 45.39 | 50.39 | |
| min | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 32.61 | 35.61 | 39.61 | 44.61 | 49.61 | ||
| da | max | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | |
| ds | max | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | |
| min | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | 21.67 | 23.67 | 26.67 | 29.67 | 32.61 | ||
| e | min | 11.43 | 13.72 | 16 | 16 | 19.44 | 19.44 | 21.73 | 21.73 | 25.15 | 27.43 | |
| k | max | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | |
| min | 11.57 | 13.57 | 15.57 | 17.57 | 19.48 | 21.48 | 23.48 | 26.48 | 29.48 | 32.38 | ||
| s | Nominale Grootte | 10 | 12 | 14 | 14 | 17 | 17 | 19 | 19 | 22 | 24 | |
| min | 10.025 | 12.032 | 14.032 | 14.032 | 17.05 | 17.05 | 19.065 | 19.065 | 22.065 | 24.065 | ||
| max | 10.175 | 12.212 | 14.212 | 14.212 | 17.23 | 17.23 | 19.275 | 19.275 | 22.275 | 24.275 | ||
| t | min | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13.5 | 15.5 | 18 | |
| w | min | 4.8 | 5.8 | 6.8 | 7.8 | 8.6 | 9.4 | 10.4 | 11.9 | 13.1 | 13.5 | |
| Schroef Behoerd d | M36 | M42 | M48 | M56 | M64 | M72 | M80 | M90 | M100 | - | ||
| P | Sjmiete | Koarse thread | 4 | 4.5 | 5 | 5.5 | 6 | 6 | 6 | 6 | 6 | - |
| Fijne thread toonhoogte-1 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | - | ||
| Fijne thread toonhoogte-2 | - | - | - | - | - | - | - | - | - | - | ||
| dk | gewoen hoof | max | 54 | 63 | 72 | 84 | 96 | 108 | 120 | 135 | 150 | - |
| knoopde hoofde | max | 54.46 | 63.46 | 72.46 | 84.54 | 96.54 | 108.54 | 120.54 | 135.63 | 150.63 | - | |
| min | 53.54 | 62.54 | 71.54 | 83.46 | 95.46 | 107.46 | 119.46 | 134.37 | 149.37 | - | ||
| da | max | 39.4 | 45.5 | 52.6 | 63 | 71 | 79 | 87 | 97 | 107 | - | |
| ds | max | 36 | 42 | 48 | 56 | 64 | 72 | 80 | 90 | 100 | - | |
| min | 35.61 | 41.61 | 47.61 | 55.54 | 63.54 | 71.54 | 79.54 | 89.46 | 99.46 | - | ||
| e | min | 30.85 | 36.57 | 41.13 | 46.83 | 52.53 | 62.81 | 74.21 | 85.61 | 97.04 | - | |
| k | max | 36 | 42 | 48 | 56 | 64 | 72 | 80 | 90 | 100 | - | |
| min | 35.38 | 41.38 | 47.38 | 55.26 | 63.26 | 71.26 | 79.26 | 89.13 | 99.13 | - | ||
| s | Nominale Grootte | 27 | 32 | 36 | 41 | 46 | 55 | 65 | 75 | 85 | - | |
| min | 27.065 | 32.08 | 36.08 | 41.08 | 46.08 | 55.1 | 65.1 | 75.1 | 85.12 | - | ||
| max | 27.275 | 32.33 | 36.33 | 41.33 | 46.33 | 55.4 | 65.4 | 75.4 | 85.47 | - | ||
| t | min | 19 | 24 | 28 | 34 | 38 | 43 | 48 | 54 | 60 | - | |
| w | min | 15.3 | 16.3 | 17.5 | 19 | 22 | 25 | 27 | 32 | 34 | - | |

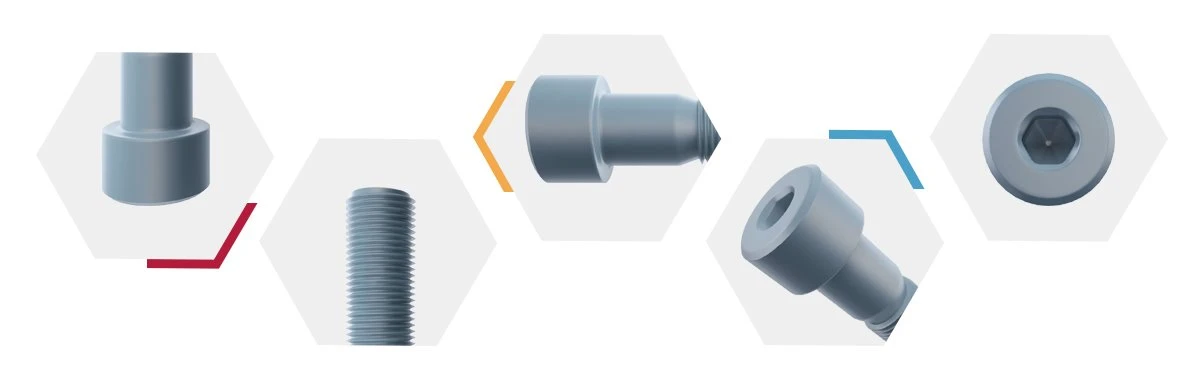

Details Producte
Produktadvies
Veurdeile vaanHex Sokt-kapsboute
1. De hoofvörm vaan de Allen-kapschroef kin ‘n groetere lading drage.
2. Omdat ‘t hoof in de deile moet weure ingebed, is de verbindingssterk vaan de hex stopcontacte groeter.
3. Vergeleke mèt gewoene boute, DIN 912 Allen-boute kinne ‘n hoeger koppel- en klemkrach bereike.
4. Onder de veurwaarde vaan dezelfde klemkrach, weure minder hexagon-sokketboute gebruuk.
5. Minder boring en tikke in ‘t montage oppervlak, bespart tied en ‘t vermindere vaan potentiële sjaoj op oonderdeile.
6. ‘t Gebruuk vaan Allen-bout DIN 912 kin ‘t gewicht vaan ‘t afgemaakde product vermindere.
7. AYA zal u de mies gesjikde bevestigingsoplossing geve volgens de feiteleke situatie in u gebeed.

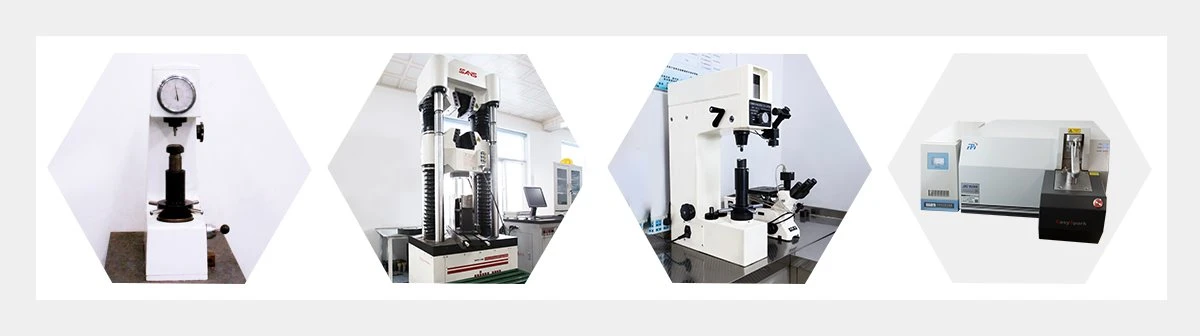

Kwaliteitsinspectie
Ervare QC-personeel kin klante nauwkeurige kwaliteitsinspectierapporte geve.
Ozze digitale systeem houdt eder batch traceerbaar vaan ruwmateriale tot afgemaakde producte. Volledige inspectiecertificaten kinne op verzeuk weure aongeboje.

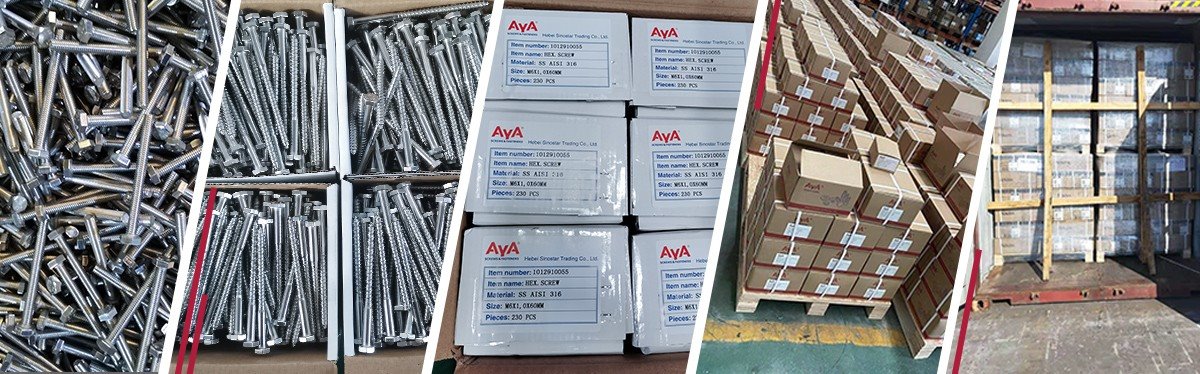

Verpakking & Container Laading
Verpakking is belangriek veur ‘t behoud vaan product en veur veiligheid. AYA heet constant nuie oplossinge oontwikkeld um producte intact te hawwe tijdens ‘t zendingsproces.
Gebruuksscenario’s
Wiezoe Keze AYA?
AYA levert exclusieve deenste aon 1000+ leie vaan de ganse wereld eder jaor, mèt ‘n uniek kettingservice-oplossingssysteem, hoeft allein op de moes te klikke um exclusief bevestigingsoplossing te kriege en geniet vaan deur{{1}<}to{2}} deurdienste.
